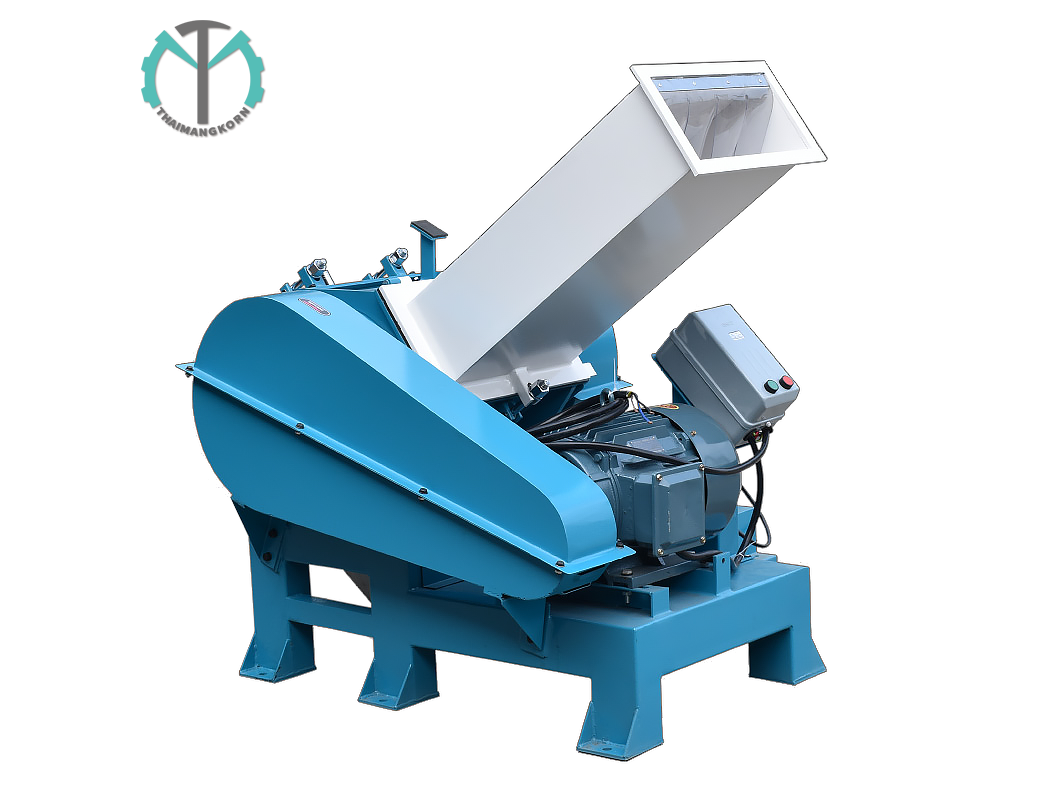

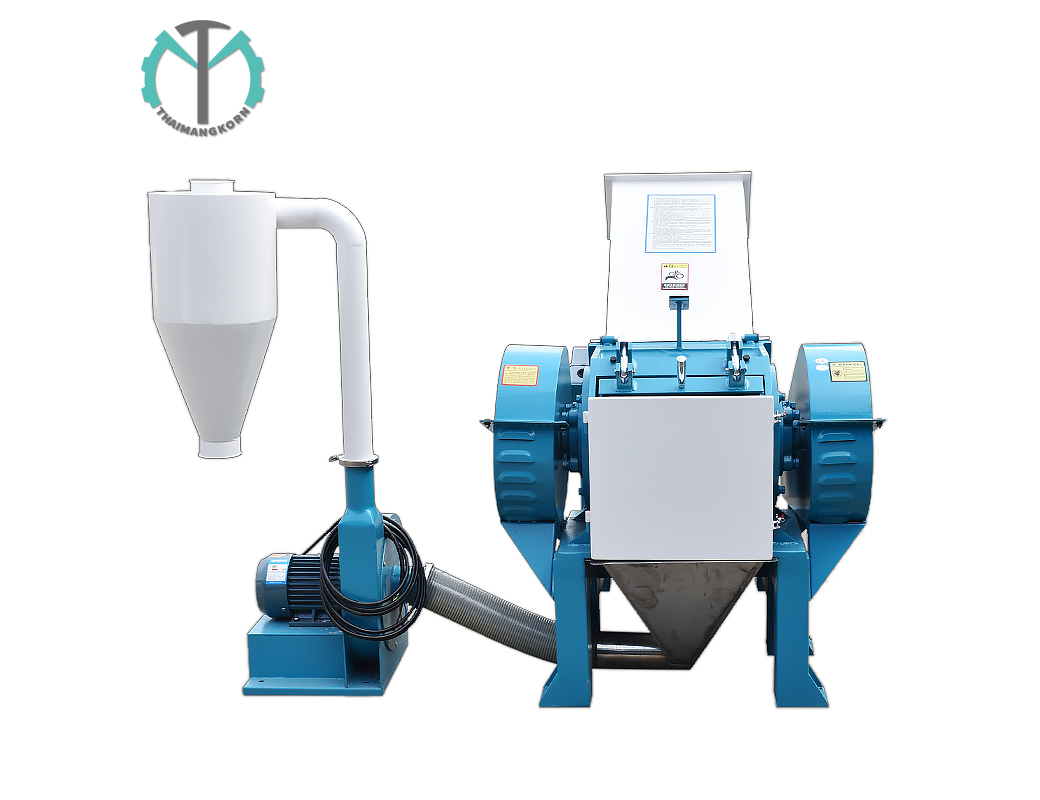

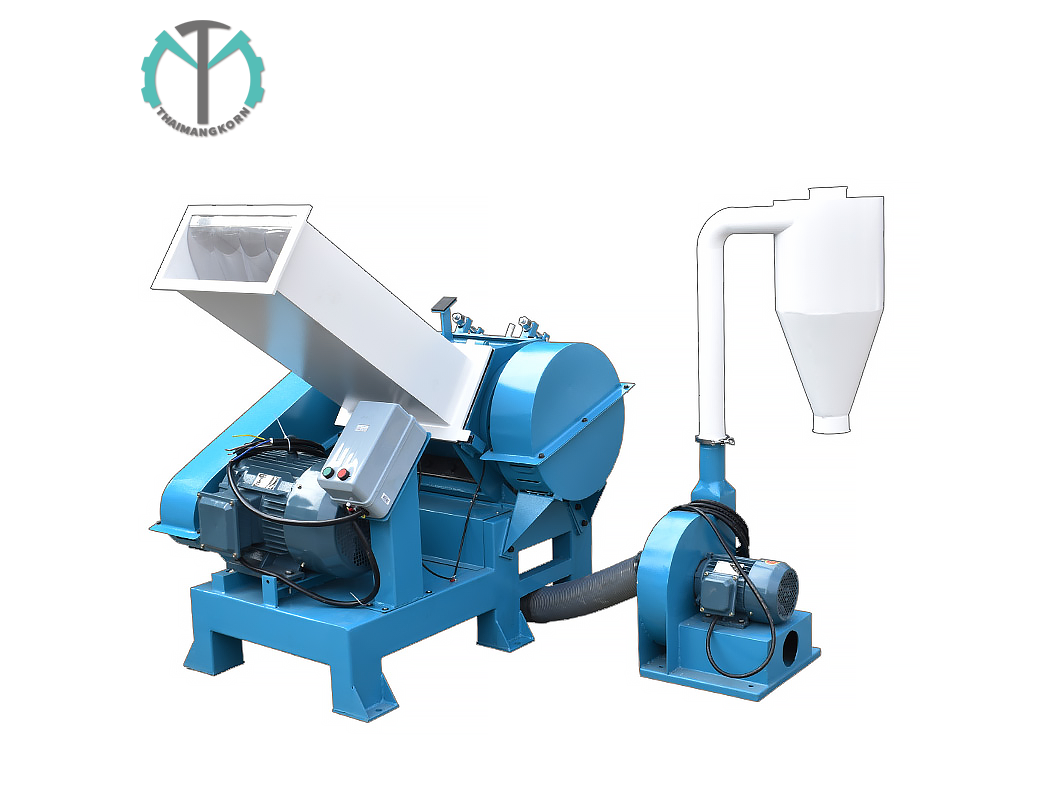

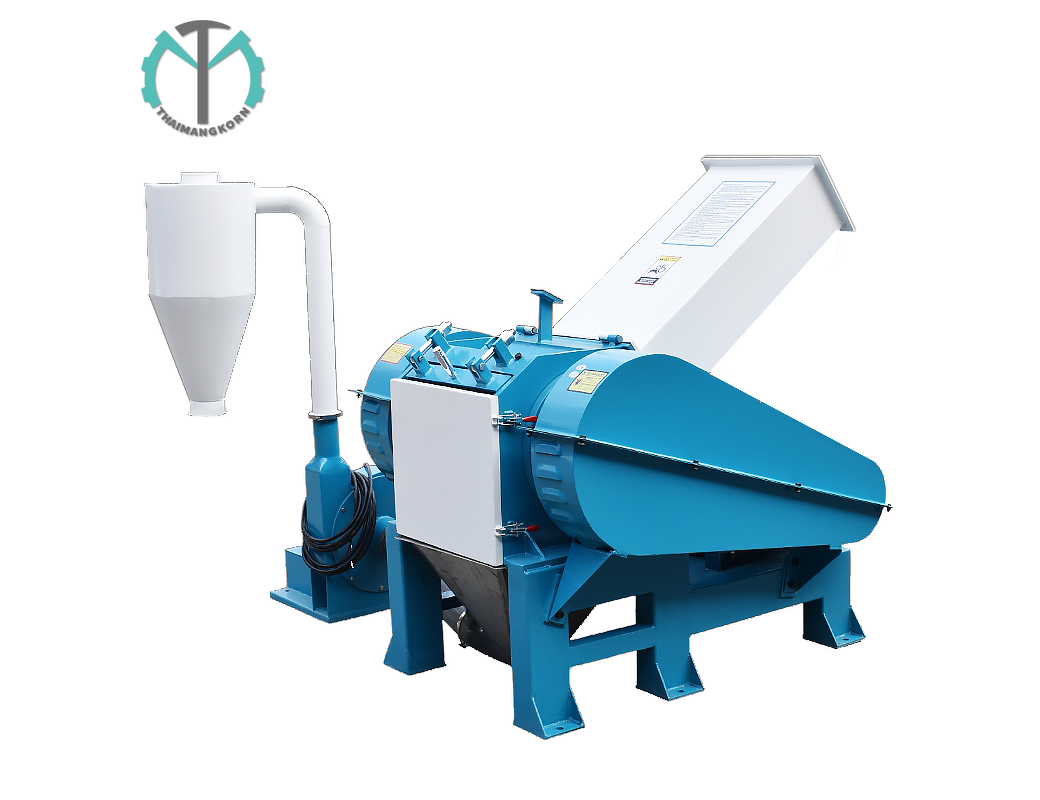

TYRONE plastic pipe/cardboard/plastic sheet crusher/grinder/shredder machine for recycling
* suitable for crushing and recycling tray, pipe and wide cut sectional material, which avoids products predecomposition process and reduces material degradation when using normal crusher machine. Save labour, cut down labour strength and increase crushing and recycling efficiency; * Using V-shape knife or flat knife, which are wide use; cutting in scissor method, less energy consumption and less shear heat, high cutting efficiency and granule size evenly;
Model No.
TLG4128
TLG6032
TLG6246
TLG7146
TLG8146
TLG8156
TLG1065
TLG1283
Crushing caliber(mm)
410*280
600*320
620*460
710*460
810*460
810*560
1020*650
1220*830
Feeding inlet size (mm)
380*200
580*200
590*280
680*280
780*280
780*280
980*300
1180*330
Crushingability (kg/hr)
50-250
120-400
200-500
250-600
250-650
300-800
350-900
700-1700
Cardboard crusher cutter(pcs)
(fixed)2+(rotated)6
(fixed)2+(rotated)6
(fixed)2+(rotated)6
(fixed)4+(rotated)6
(fixed)4+(rotated)6
(fixed)4+(rotated)6
(fixed)4+(rotated)6
(fixed)4+(rotated)6
Pipe crusher cutter (pcs)
(fixed)2+(rotated)12
(fixed)2+(rotated)18
(fixed)2+(rotated)18
(fixed)4+(rotated)21
(fixed)4+(rotated)24
(fixed)4+(rotated)24
(fixed)4+动(rotated)30
(fixed)4+(rotated)6
Power
10HP
20HP
30HP
30HP
40HP
50HP
60HP
75HP/100HP
Rotate speed（r/min）
520
520
520
500
500
480
480
480
Mesh size
8mm
10mm
12mm
12mm
12mm
12mm
14mm
16mm
Driving wheel/mm
330
360
420
420
490
490
600
800
Balance wheel/mm
330
360
420
420
490
490
600
800
Dimensions/mm
1300*860*11200
1400*1120*1650
1600*1240*1940
1600*1320*1700
1600*1410*1700
1780*1550*1900
1850*1800*2000
2000*2000*2150
Weight/kg
400
850
1100
1500
1900
2500
2800
5000
Remark：
Flat knife for plates crushing, suitable for crushing long and thin material, such as sheet, small size and thin pipe and hollow thin sheets
Remard：
Flake knife for pipe crushing, suitable for thick materials, such as thick pipe,sheet and sectional material
After-sales Service Provided：No overseas service provided

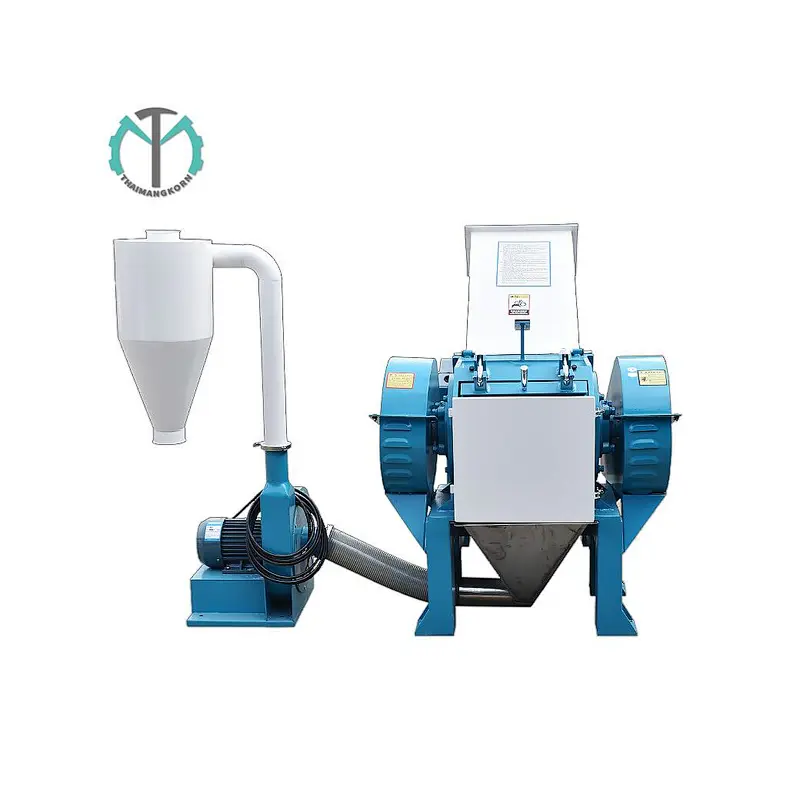

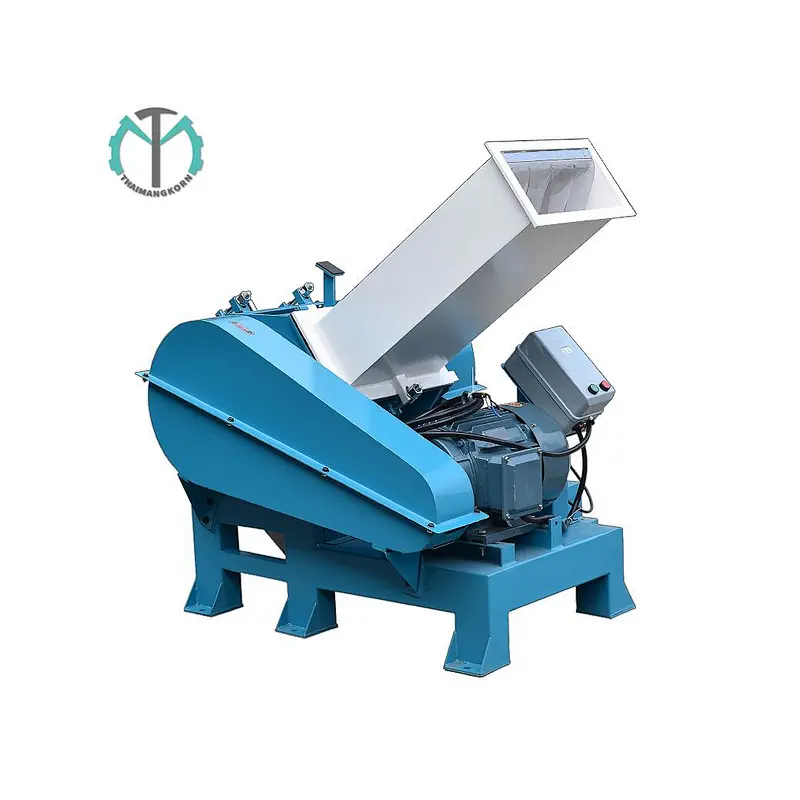

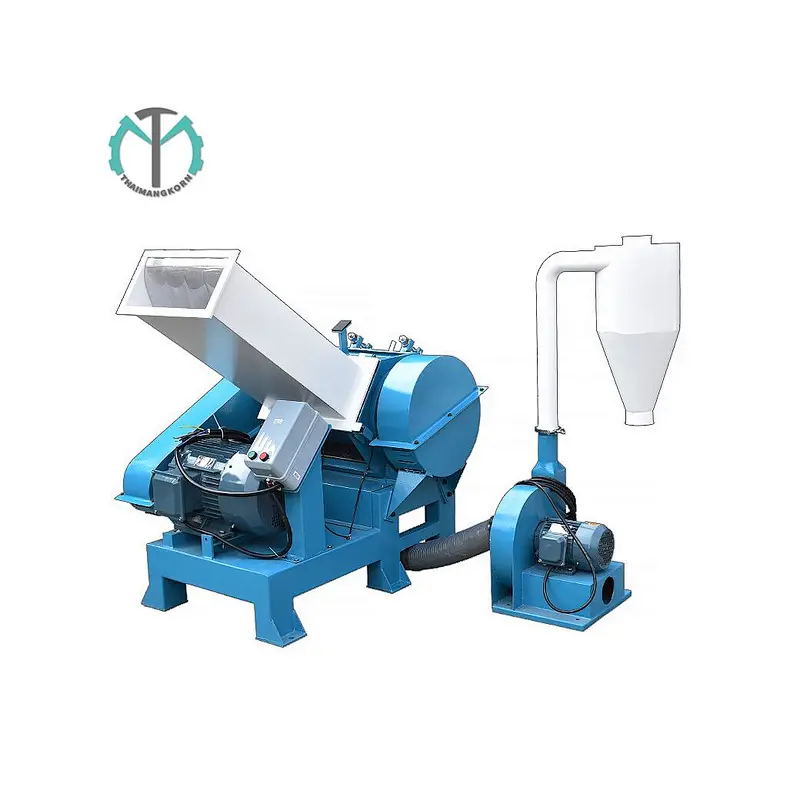

TYRONE plastic pipe/cardboard/plastic sheet crusher/grinder/shredder machine for recycling
TLG4032
* suitable for crushing and recycling tray, pipe and wide cut sectional material, which avoids products predecomposition process and reduces material degradation when using normal crusher machine. Save labour, cut down labour strength and increase crushing and recycling efficiency; * Using V-shape knife or flat knife, which are wide use; cutting in scissor method, less energy consumption and less shear heat, high cutting efficiency and granule size evenly; * Model no. up from TLG6246,adopting the front knife design; and model no. up from TLG8156,setting external bearing, which avoids dust and water intrude into the bearing, good heat dissipation and easy to maintenance; * larger size machine adopts electric screw or hydraulic system to opening and closing crushing chamber and screen, maintenance in a very convenient way and cleaning crushing chamber fast at the same time; * special feeding inlet design, short and placosyncline, which convenient to feed tray and wide cut material into the crushing chamber; * the rotor is strength weld steel structure, which can design the most suitable rotor based on different material for reaching optimized cutting; we can provide the best feeding solution according to different material; * the rotor is passed strict static and dynamic equilibrium which ensure the smooth and steady operating of the machine.
TYRONE plastic pipe/cardboard/plastic sheet crusher/grinder/shredder machine for recycling
TLG4032
* suitable for crushing and recycling tray, pipe and wide cut sectional material, which avoids products predecomposition process and reduces material degradation when using normal crusher machine. Save labour, cut down labour strength and increase crushing and recycling efficiency; * Using V-shape knife or flat knife, which are wide use; cutting in scissor method, less energy consumption and less shear heat, high cutting efficiency and granule size evenly; * Model no. up from TLG6246,adopting the front knife design; and model no. up from TLG8156,setting external bearing, which avoids dust and water intrude into the bearing, good heat dissipation and easy to maintenance; * larger size machine adopts electric screw or hydraulic system to opening and closing crushing chamber and screen, maintenance in a very convenient way and cleaning crushing chamber fast at the same time; * special feeding inlet design, short and placosyncline, which convenient to feed tray and wide cut material into the crushing chamber; * the rotor is strength weld steel structure, which can design the most suitable rotor based on different material for reaching optimized cutting; we can provide the best feeding solution according to different material; * the rotor is passed strict static and dynamic equilibrium which ensure the smooth and steady operating of the machine.
